Sony WH-1000XM5 Headband Hinge Swivel OEM Replacement + 16-Pin Connector – Left/Right – Black Blue Silver Pink

Genuine Sony WH-1000XM5 Headband Hinge Swivel Repair Part

16-Pin Connector Included – Choose Left or Right – Black, Blue, Silver, Pink

If your WH-1000XM5 ear cup is loose, cracked, or won’t hold position, the hinge swivel is typically the failure point. This listing includes the hinge and the required 16-pin connector needed to complete the repair.

🔧 Fixes These Common Problems:

• Ear cup hanging loose
• Headband broken at the swivel
• Visible crack near hinge joint
• Headphones won’t stay secure on head
• Ear cup flopping or unstable
• Swivel separated from headband

If the hinge is cracked, replacement is required to restore proper fit and stability.

📦 What’s Included:

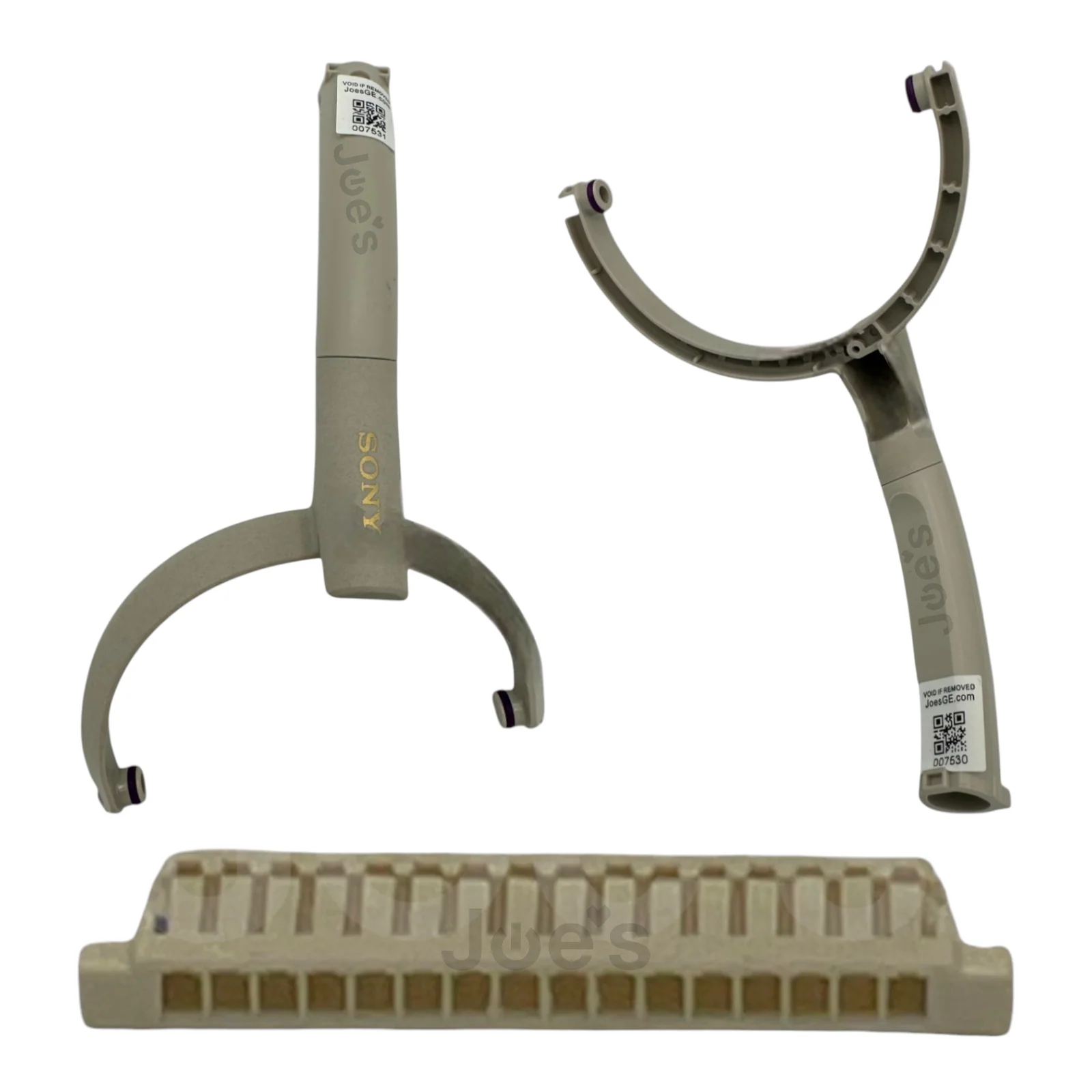

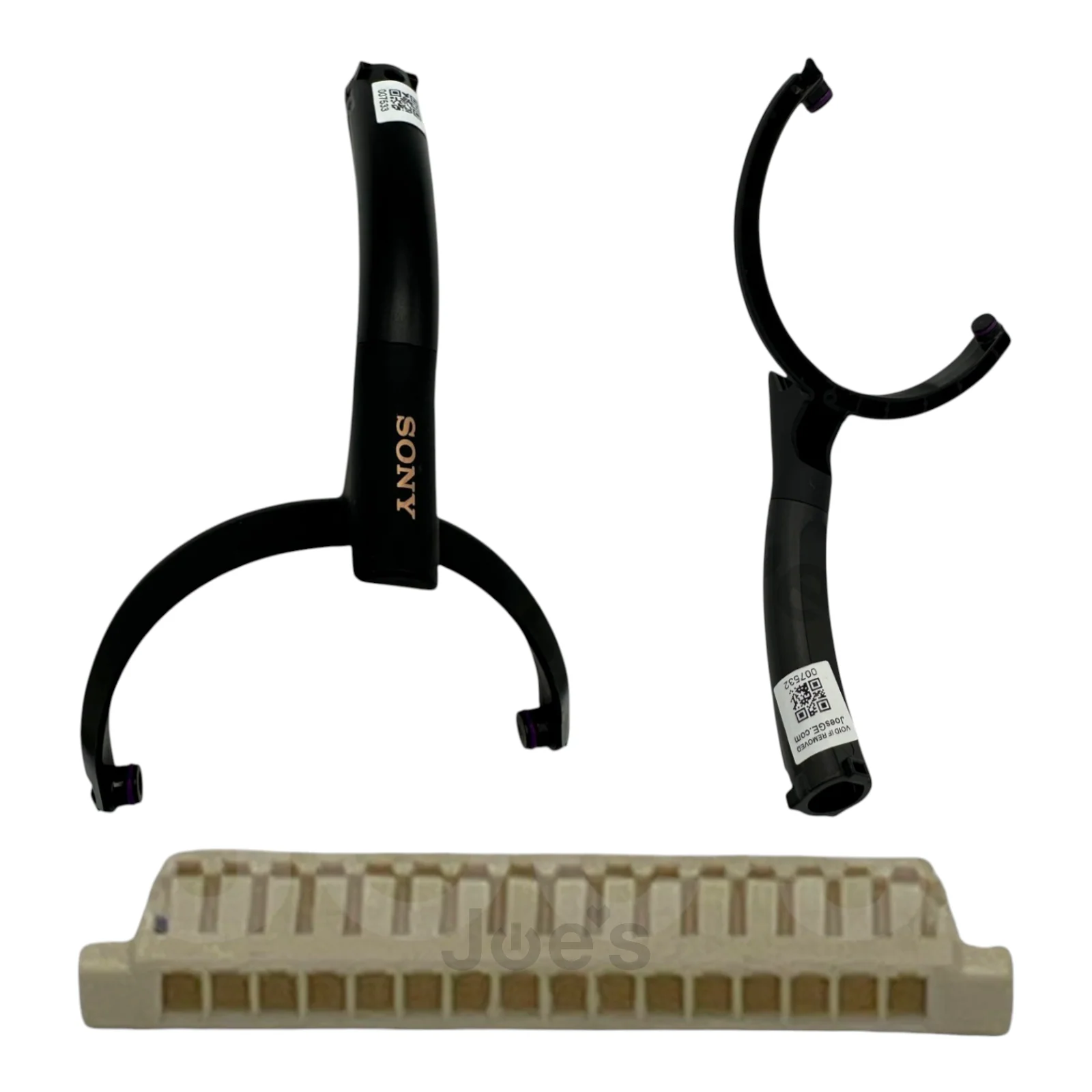

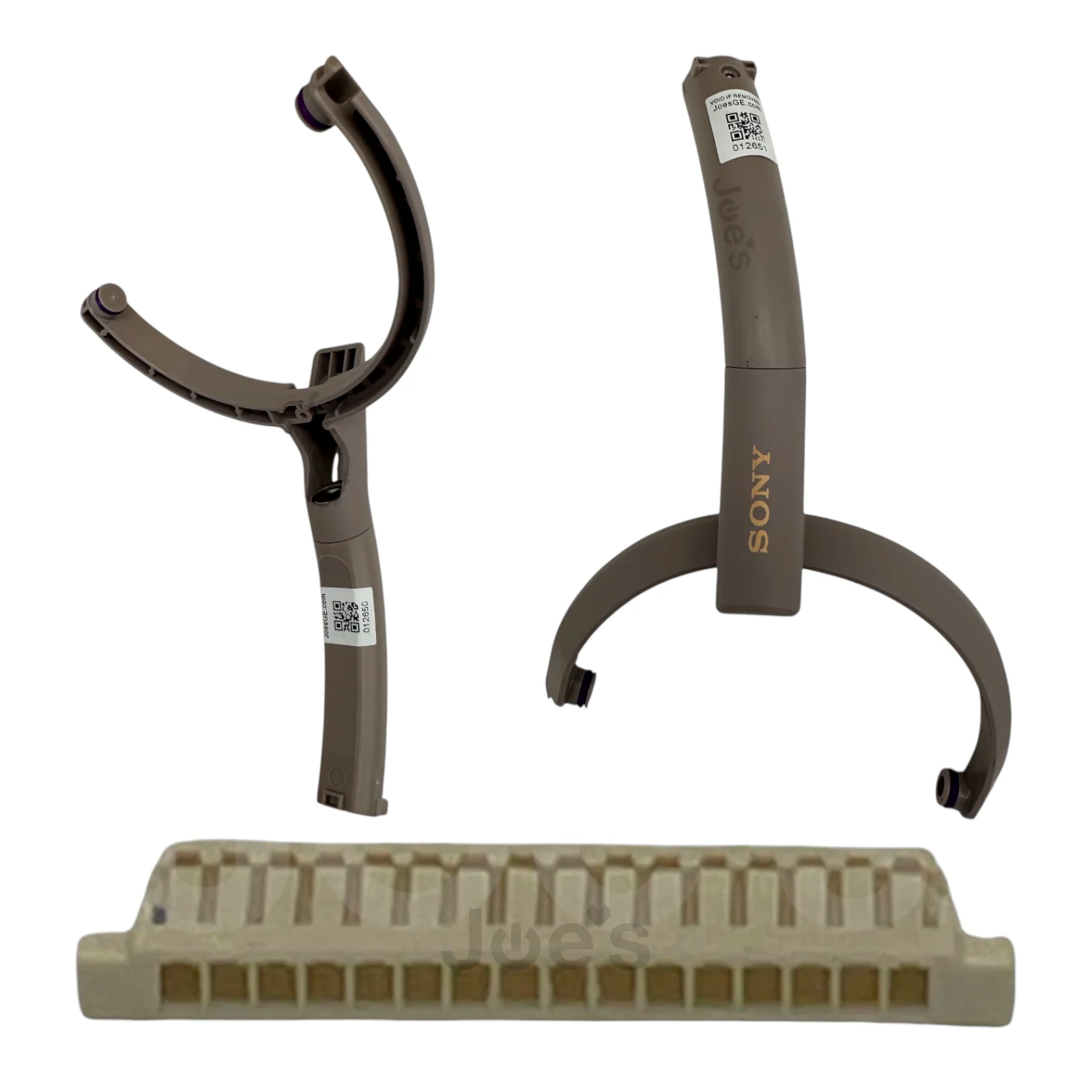

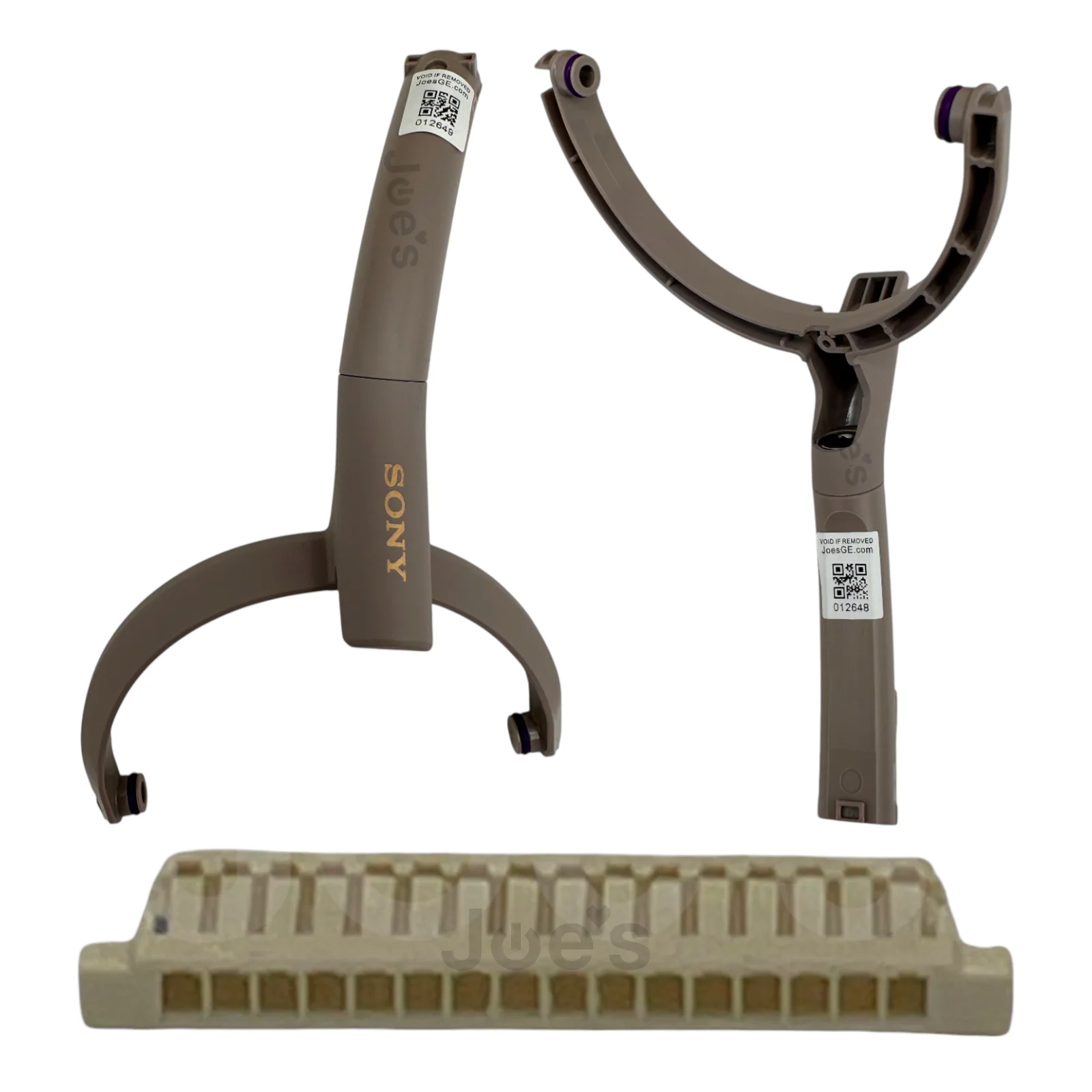

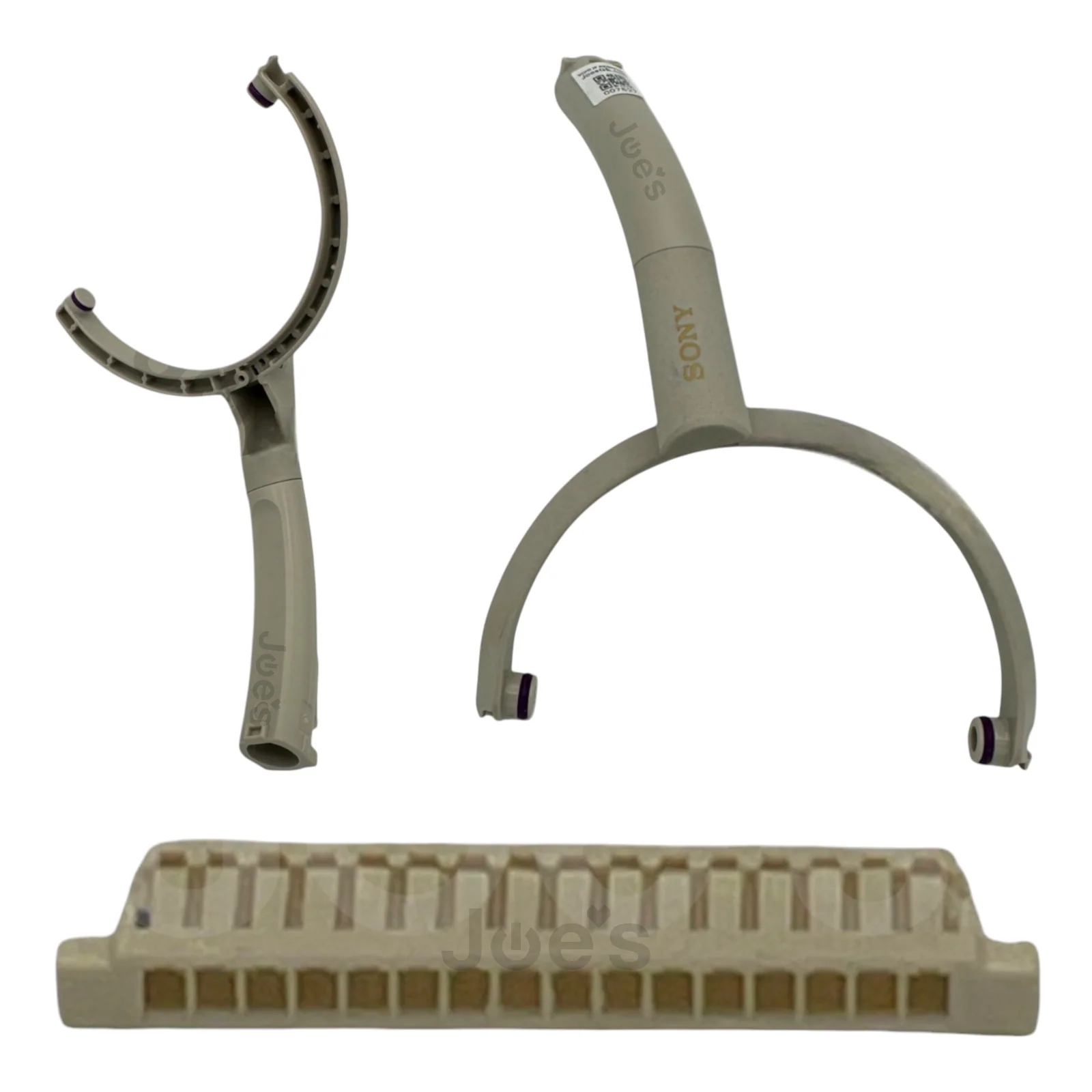

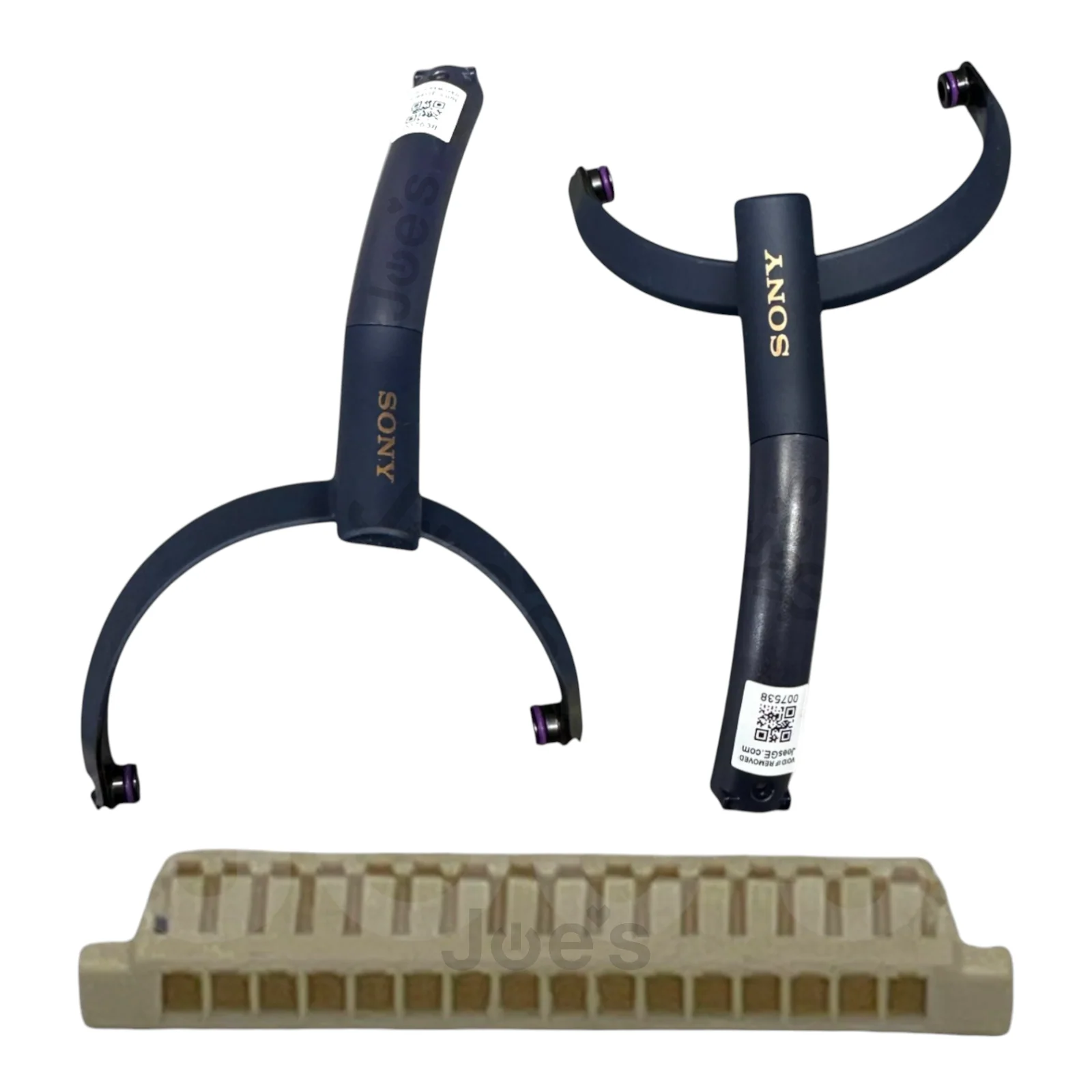

• 1 x Genuine Sony WH-1000XM5 Hinge Swivel (Select Left or Right)
• 1 x 16-Pin Connector (Included)

Color of your choice: Black, Blue, Silver, or Pink

The 16-pin connector is required to properly reconnect wiring after transferring the internal wires through the new hinge.

⚠️ Installation Notes (Important)

• Internal wiring must be carefully rerouted through the hinge during installation.
• The included 16-pin connector is used to reconnect the wires after hinge removal.
• Avoid pinching wires during reassembly.

Common Mistake to Avoid:
Before removing the original 16-pin connector, take a clear photo of the wire layout. All 16 wires must be reinstalled in the exact same order and orientation.

Incorrect wire placement may result in:

• No power
• No sound
• Partial functionality

Professional installation is recommended.

Repair Difficulty: Moderate
Estimated Time: 25–45 minutes

🎥 Step-By-Step Repair Videos

We provide full installation walkthroughs for both hinge sides.

Left Side Hinge Replacement Video

Right Side Hinge Replacement Video

📘 Full Written Repair Guide

Prefer detailed step-by-step instructions with images?

Read our complete Sony WH-1000XM5 repair guide here:

Compatibility:

✔ Sony WH-1000XM5 Only
✘ Not compatible with WH-1000XM3 or WH-1000XM4
